Waste Water Systems

Waste Water Equipment



How the system works…


The RT Unit is Filled with effluent. The turbine mixer is started and DH Reactant is added. After 5 minutes of mixing a large floc will form. The mix of the floc will sink to the bottom of the tank, usually in a couple of minutes.


Once draining and filtering begins. Cleaned water from the upper area of the tank is drained first, followed by the floc (sludge). Filter media captures the solids, allowing the clean water through to a clean compartment. A discharge pump automatically transfers the fluids to sewer or recycling vessel.


An Automated conveyor advances the filter media and sludge as needed. This usually requires only 5 feet of filter media and sludge for disposal. The sludge dries to a cake, without the need of a filter press. The process is now complete. The water will pass local discharge limits, and the sludge will pass TCLP

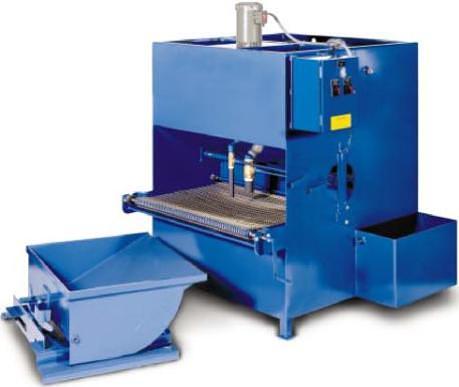

Giant Model: PBF-30 Paper bed filtration system.


A thirty gallon capacity system for filtering and recycling the outflow from a mass finishing system. As the fluids drain from the vibratory unit, they pass across a filter bed. The water drains through and the solids carry out with the filter paper. The paper is advanced automatically, and it falls into a collection bin. The filtered water is recycled back into the mass finishing unit. The paper only advances as needed, so there is no waste.


Waste Water Treatment Systems


200SA Brochure TT-125 Brochure PBF-30 Brochure


FEATURES:


  • Sophisticated, yet user-friendly technology.
  • Guaranteed to meet local sewer discharge limits.
  • Excellent choice for recycling.
  • Clear advantages over ultra filtration and evaporation.
  • No hazardous by-products.
  • Compact: typical dimensions are only 80″ x 70″
  • Batch Sizes of 65, 200, 350, 500, 750, 1000 gallons.
  • Cycle takes 30 minutes and requires only 10 minutes of EASY attendance.
  • Very low maintenance.
  • Handles almost any aqueous based fluid, including:
  • metal plating
  • vibratory equipment and parts washing
  • floor cleaning
  • metal working fluids, etc.



  • Settling Tanks
  • ST-10

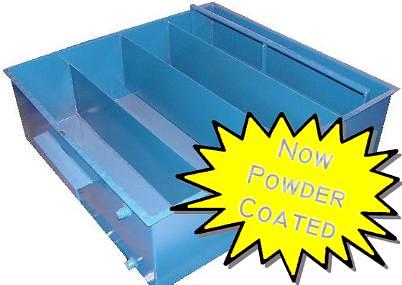

  • ST-55
  • Wrap Around Tanks
  • Hug the base of your vibratory bowl to minimize foot print
  • Custom Built
  • Contact us to help design a settling tank to fit in your finishing area
  • Paper Bed Filters
  • PBF-30
  • PBF-60
  • Centrifuge Systems
  • Flocculant Systems
  • TT-125
  • SA-200
  • Ultrafiltration Systems
