Giant W-5 Vibratory Finishing Machine

GIANT Model Wedge 5 Vibratory Deburring and Finishing Machine is hands down the most versatile machine on the market. This machine can be set up to handle aggressive Deburring and descaling to fine finishing or polishing. You can convert this machine within minutes to another process with a simple change in the media and chemistry. This vibratory machine is made with steel fabricated heavy duty construction, as specified and described below. SPECIFICATIONS: Tub Process Capacity.................................................................................................................5 Cu. Ft. Tub Length..............................................................................(in side)..................................35 1/4" Tub Width...............................................................................(in side)………………................19" Overall Height..............................................................................................................................39"/47" Overall Length..............................................................................................................................45" Overall Width.............................................................................................................................. 31" Floor Space....................................................................................................................................9.7 Sq. Parts/Media Discharge Height...................................................................................................22" Polyurethane Lining Thickness.................................................................................................3/4" Shipping Weight.................................................................................................................1040 lbs. Paint....................................................................................................Powder Coated Giant Blue Drive Unit 1 1/2 H.P. T.E.F.C. STANDARD FEATURES: Balanced Suspension Drive, hinged sound cover, 110 volt on-off switch, media discharge door, easy access to parts, 10 gallon slide out settling tank with pump, and casters for portability. ELECTRONIC VARIABLE SPEED DRIVE: An AC inverter coupled directly to the motor controls the vibration frequency. Push buttons for increase or decrease of the vibration frequency. PRICE, as described above...........................................................................................$ 9,950.00 OPTIONS: 230/460, 3 PHASE, 60 CYCLE MOTOR (Customer to supply their own disconnect) PRICE......................................................................................................................................$ 400.00 CONTROL PANEL - NEMA 12 including 0-1 hour process timer and receptacle. Standard voltage: 230/460/3PH./60HZ. PRICE..............................................................................................................................$ 2,900.00 NOTE: Electrical controls and components for the herein quoted equipment are of standard design using I.E.C. components and do not represent individual customer requirements. If special machinery specifications, i.e., electrical controls and/or components do exist, please submit to Giant Finishing, Inc. for evaluation and re-quotation purposes. OTHER VOLTAGE IS AVAILABLE UPON REQUEST. CONSULT FACTORY FOR ADDITIONAL CHARGES. ST-55 SETTLING TANK powder coated with pullout sludge tray in first stage. 55 gal capacity, 14” height x 26” wide x 36” deep with 1” NPT overflow connection to drain. PRICE…………………………………………………………………………………$ 2,650.00 ST-55-SS SETTLING TANK stainless steel with pullout sludge tray in first stage. 55 gal. capacity, 14" height x 36" wide x 36" deep with 1" NPT overflow connection to drain.…...…………………………………………………………………………..…$ 3,350.00 AUTOMATIC PREMIXING COMPOUND SYSTEM designed to mix compound and water into vibratory mass on a continuous basis, to keep parts and media clean during processing. Complete with pump, mixing head, valves, spray headers, 15 gal drum and drain hoses. PRICE......................................................................................................................................$ 1,750.00 AUTOMATIC CARTRIDGE GREASE SYSTEM for lubrication of the vibrator bearings. Consists of a reservoirs with grease and adjustable cycle PRICE……………………………………………………………………………...……..$ 1,300.00

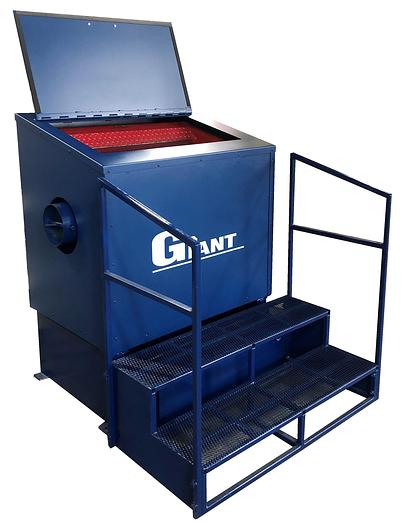

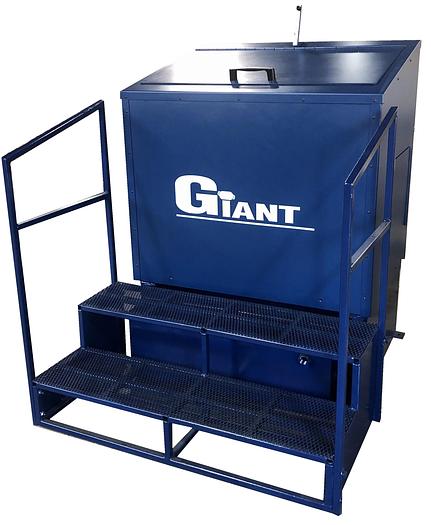

SPACE SAVING PACKAGE  includes ST-55 settling tank with pull out tray and pump, legs to raise W-5 machine, and stairs with railing to easily access working chamber on machine.

The ST-55 settling tank allows for over 5 times the settling time or capacity of the standard 10 gallon tank that comes standard with the machine. Main purpose of this tank is to settle out the heavy solids prior to recirculating or going to drain………………………………….....................................$ 4,900.00

TUB DIVIDER.................................................................................................................... $ 800.00 SOUND PACKAGE……………………………………..………………………………$ 900.00 CURVED REAR WALL……………………………..…………………………………..$ 700.00
