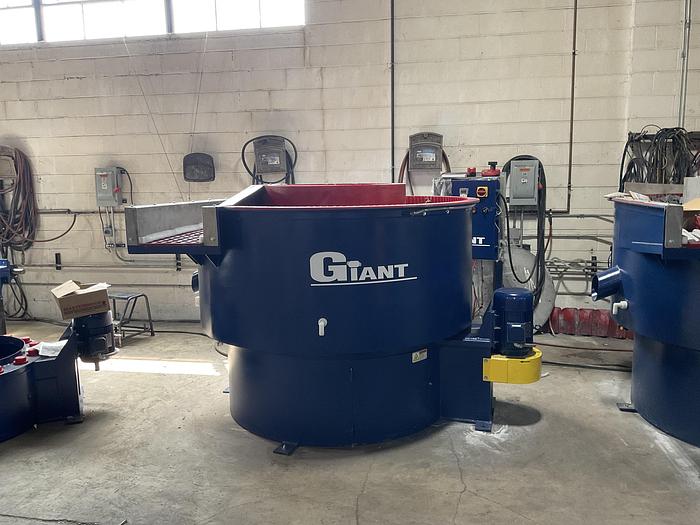

Factory Certified GB-20

Giant Finishing Model GB-20 Spiral Bowl with Internal Separation Vibratory Deburring and Finishing Machine.

SPECIFICATIONS:

Cubic Feet Process Capacity………………………………………………………………..........20

Horsepower Motor……………………………………………………………………….............10

Polyurethane Lining Thickness…………………………………………………………..............1"

Shipping Weight…………………………………………………………………………...6312 lbs

Floor Space………………………………………………………………………………..48 Sq. Ft

Maximum Load Capacity………………………………………………………………….6000 lbs

Bowl Diameter…………………………………………………………………………….........80"

Unload Height………………………………………………………………………..................40"

Channel Width - After Lining………………………………………………………….............17"

Channel Depth – Average………………………………………………………………............24"

Overall Height……………………………………………………………………………..........56"

Overall Depth……………………………………………………………………………...........85"

Load Height……………………………………………………………………………............50”

STANDARD COMPONENTS:

·      HEAVY DUTY BOWL AND BASE is of all welded steel construction reinforced by gusset plates. The bowl is stress relieved then shot-peened for maximum durability and lined with urethane.

·      PRECISION DRIVE SYSTEM consisting of heavy duty spherical roller bearings mounted to the vertical drive shaft.

·      NEMA-12 CONTROL PANEL including 0-1 hour process timer and lapsed time recorder. Control panel is JIC approved and U.L. listed. Standard voltage: 460/3/60 cycle.

·      OTHER VOLTAGE IS AVAILABLE UPON REQUEST.  CONSULT FACTORY FOR ADDITIONAL CHARGES.

·      HIGH EFFICIENCY MOTORS

·      DROP - ON WEIGHT SEGMENTS (adjustable amplitude)

·      TUNED COIL SPRING TUB SUSPENSION

·      PARTS DISCHARGE RAMP with locking lever.

·      REMOVABLE CAST URETHANE SCREEN

·      ADJUSTABLE AMPLITUDE FLYWHEEL LEAD ANGLE for fast finishing action adjustments.

·      MEDIA DISCHARGE DOOR

·      COMPOUND INLET PIPING

·      REMOVABLE CAST URETHANE DRAIN PLUG

·      ELECTRONIC VARIABLE SPEED DRIVE WITH DIGITAL TACHOMETER: An AC inverter coupled directly to the motor controls the vibration frequency.  Push buttons for increase or decrease of the vibration frequency are in the main panel.  A digital tachometer provides a read-out of machine RPM.
