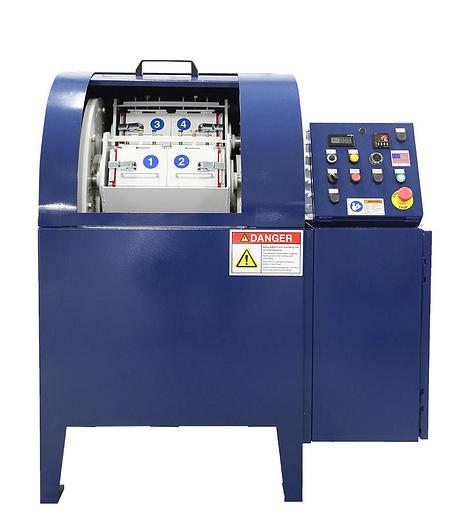

Factory Certified GCB-40

GCB-40 Machine Specs

Main Motor Hp

·       3 HP Leeson Brand

Voltage

·       230/460 Three Phase, 60 hertz (Single phase available upon request)

Total Capacity

·       1-1.42 cubic feet

Variable Speed Drive

·       Allen Bradley PowerFlex 525

Approximate Shipping Weight

·       1300 lbs.

Overall Dimensions

·       47"W x 38"D x 49"H

Machine Construction

·       Heavy duty steel

·       All welded construction

·       Reinforced, gusseted, and welded to maximum strength

Barrel Construction

. 2 sets of latch ended barrels INCLUDED

·       Various size barrels available (See Below)

·       Removable lids

·       Lined with polyurethane 1/4” min. thickness

·       Entire barrel can be removed from machine to load/unload media and parts.

Control Panel

·       NEMA 12 enclosed panel

·       UL Certification (Available upon request)

·       Allen Bradley buttons and switches

·       0-100 Hour cycle timer mounted on panel

·       Power jog of turret

Brake

·       Automatically stops the turret when a stop is activated or cycle is completed

·       Activated if door is opened

Barrel Options

Two-Sided Barrels

·       Can use dividers Non-removable liners

·       Inner Dimensions- 8.75"x5.75”

·       $1965 each (Aluminum)

Bolted-End Barrels

·       Inner Dimensions- 11"x5.875"

·       Heavier Duty with Removeable Liners

·       $750 each

Latched-End Barrels

·       Inner Dimensions- 12.5”x6.875”

·       Highest Capacity with removable Liners

·       $700 each

Two Half Barrels-

·       Inner Dimensions- 5.375"x6.875"

·       8 Total with Removable Liners (2 per cradle)

·       $650 each
