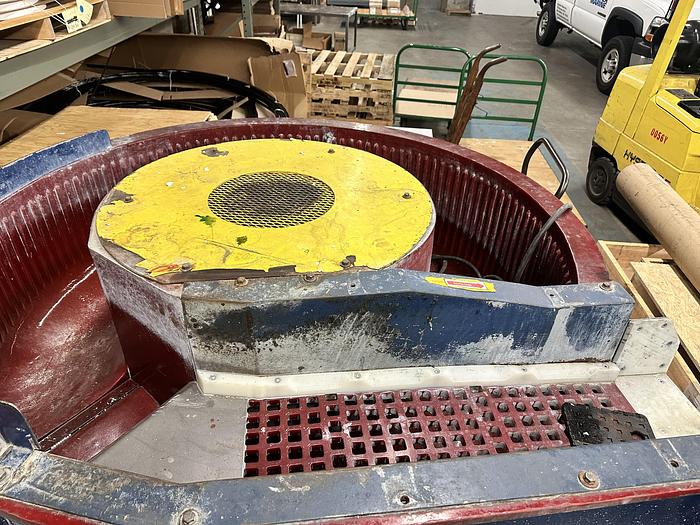

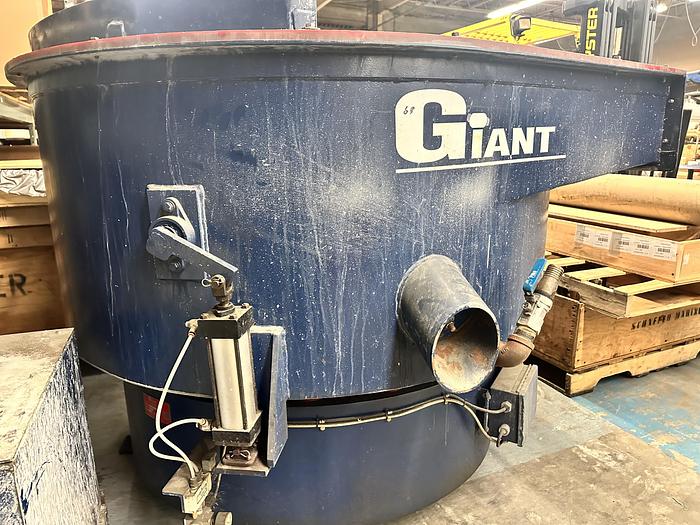

Factory Certified GB-10

SPECIFICATIONS:

Cubic Feet Process Capacity………………………………………………………………..........10

Horsepower Motor…………………………………………………………………………........7.5

Polyurethane Lining Thickness1…………………………………………………………............1"

Shipping Weight…………………………………………………………………………...3498 lbs

Floor Space………………………………………………………………………………..31 Sq. Ft

Maximum Load Capacity………………………………………………………………….2000 lbs

Bowl Diameter…………………………………………………………………………….........65"

Unload Height……………………………………………………………………………..........39"

Channel Width - After Lining………………………………………………………….............13"

Channel Depth – Average………………………………………………………………......14 1/2"

Overall Height……………………………………………………………………………..........55"

Overall Depth……………………………………………………………………………...........65"

Load Height………………………………………………………………………………....48 1/2”

STANDARD COMPONENTS:

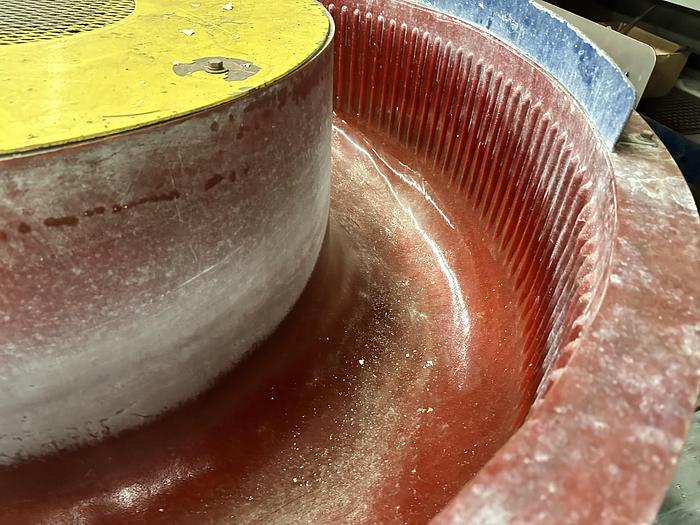

·      HEAVY DUTY BOWL AND BASE is of all welded steel construction reinforced by gusset plates. The bowl is stress relieved then shot-peened for maximum durability and lined with urethane.

·      PRECISION DRIVE SYSTEM consisting of heavy duty spherical roller bearings mounted to the vertical drive shaft.

·      NEMA-12 CONTROL PANEL including 0-1 hour process timer and lapsed time recorder. Control panel is JIC approved and U.L. listed. Standard voltage: 460/3/60 cycle

·      HIGH EFFICIENCY MOTORS

·      DROP - ON WEIGHT SEGMENTS (adjustable amplitude)

·      TUNED COIL SPRING TUB SUSPENSION

·      PARTS DISCHARGE RAMP with locking lever.

·      REMOVABLE CAST URETHANE SCREEN

·      ADJUSTABLE AMPLITUDE FLYWHEEL LEAD ANGLE for fast finishing action adjustments.

·      MEDIA DISCHARGE DOOR

·      COMPOUND INLET PIPING

·      REMOVABLE CAST URETHANE DRAIN PLUG

·      ELECTRONIC VARIABLE SPEED DRIVE WITH DIGITAL TACHOMETER: An AC inverter coupled directly to the motor controls the vibration frequency.  Push buttons for increase or decrease of the vibration frequency are in the main panel.  A digital tachometer provides a read-out of machine RPM.
